Description
This type of valve is automatically opened and closed by the force generated by the flow of the medium itself in the pipeline. It is an automatic valve. It is applicable to industrial and domestic sewage pipe networks with high viscosity and suspended solids
Main Features
▪ Size range: up to DN400; Pressure range: up to 16bar
▪ Self-cleaning, no risk of impurities getting stuck on the ball.
▪ Silent closing, no water hammer to reduce the damage to the pipeline system during valve closing
▪ 100% testing before packing and delivery
▪ full bore, 100% flow area, full waterway and low flow resistance for low headloss
▪ suitable for Horizontal or vertical installation
▪ Compact design maintains easier installation.
▪ Light weight design for easy installation
▪ Self-cleaning sinking nitrile coated ball
▪ Eliminates the risk of impurities getting stuck on the ball.
▪ Low pressure drop
▪ The rubber ball adopts hollow steel ball, and is lined with rubber layer, which maintains certain elasticity to ensure valve sealing, and has sufficient strength.
▪ Cast ductile iron valve body with Inside and outside epoxy-coating.
▪ With long service life.
Standards
▪ Designed to EN12050-4 / EN 12334
▪ Hydraulic tests according to EN 12266-1
▪ Face-to-face: EN558 Table 2 series 48 (DIN3202-F6)
▪ Flange drilling to EN1092-2/BS4504, PN10/16
▪ Normally with double flange ends. Threaded ends (BSP inside screwed) are available for size DN80 and smaller.
▪ Minimum backpressure: 0.5bar
Service Fields
▪ wasterwater, sewage & mud.
▪ Neutral liquid, Non-potable water
▪ Industrial applications
▪ power plants and process industry

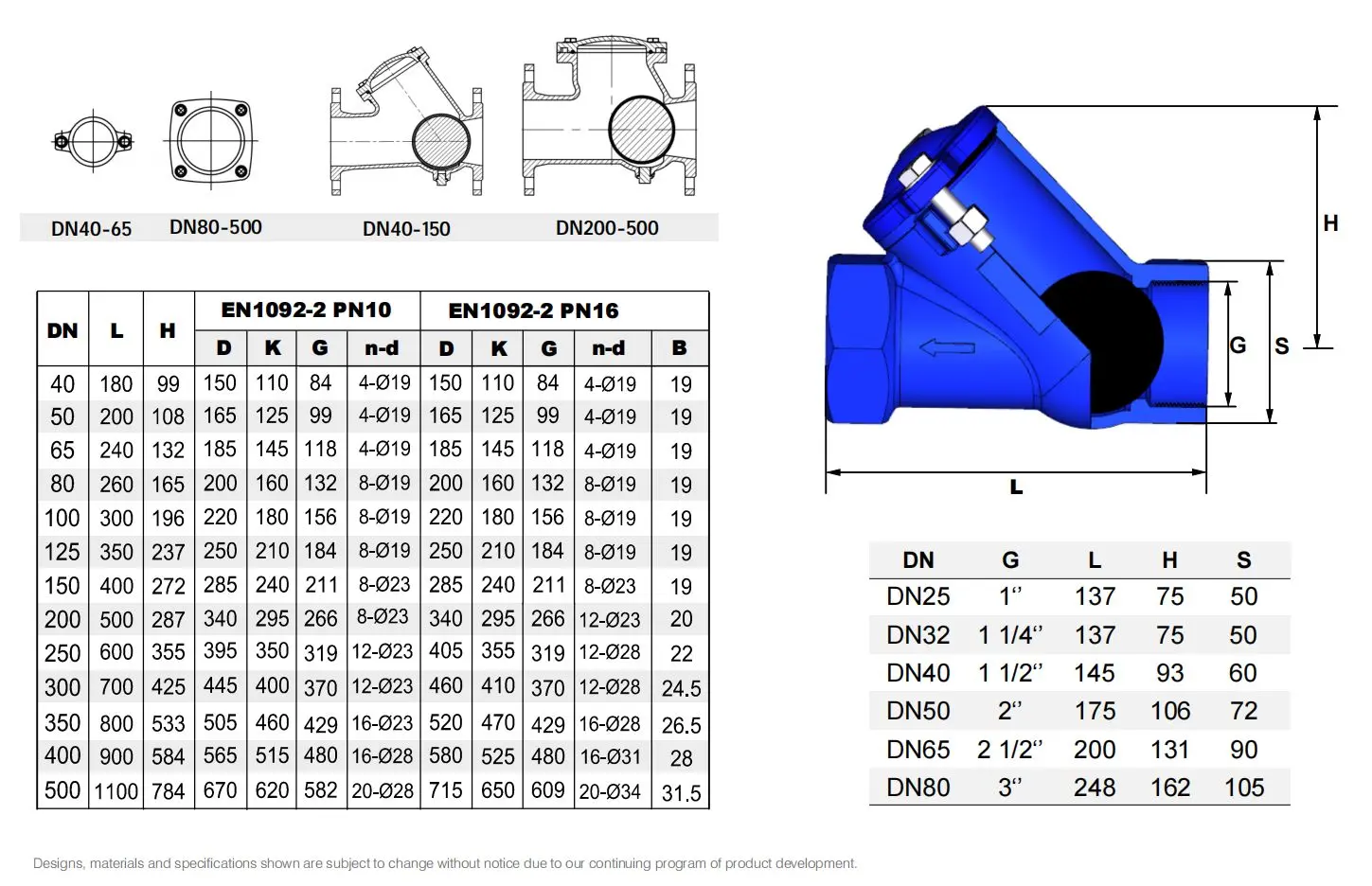

Specification

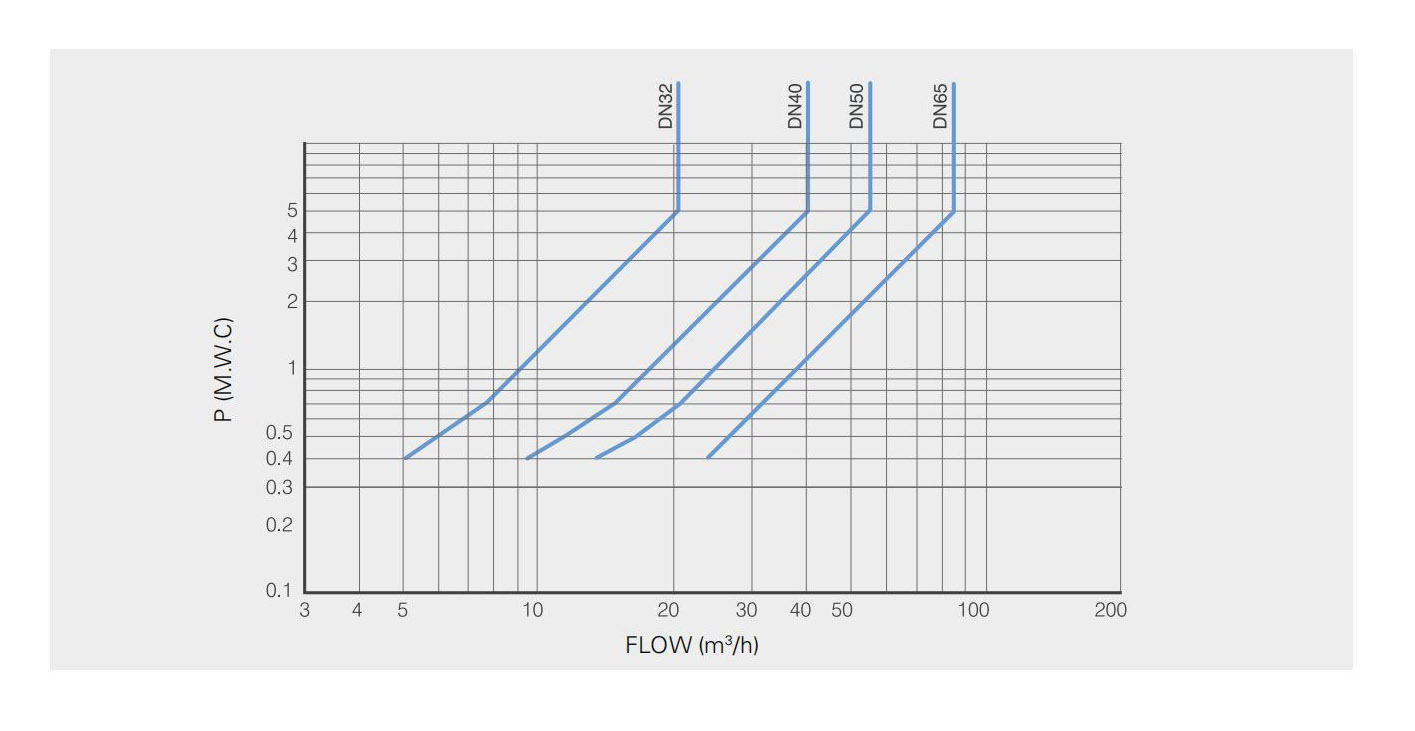

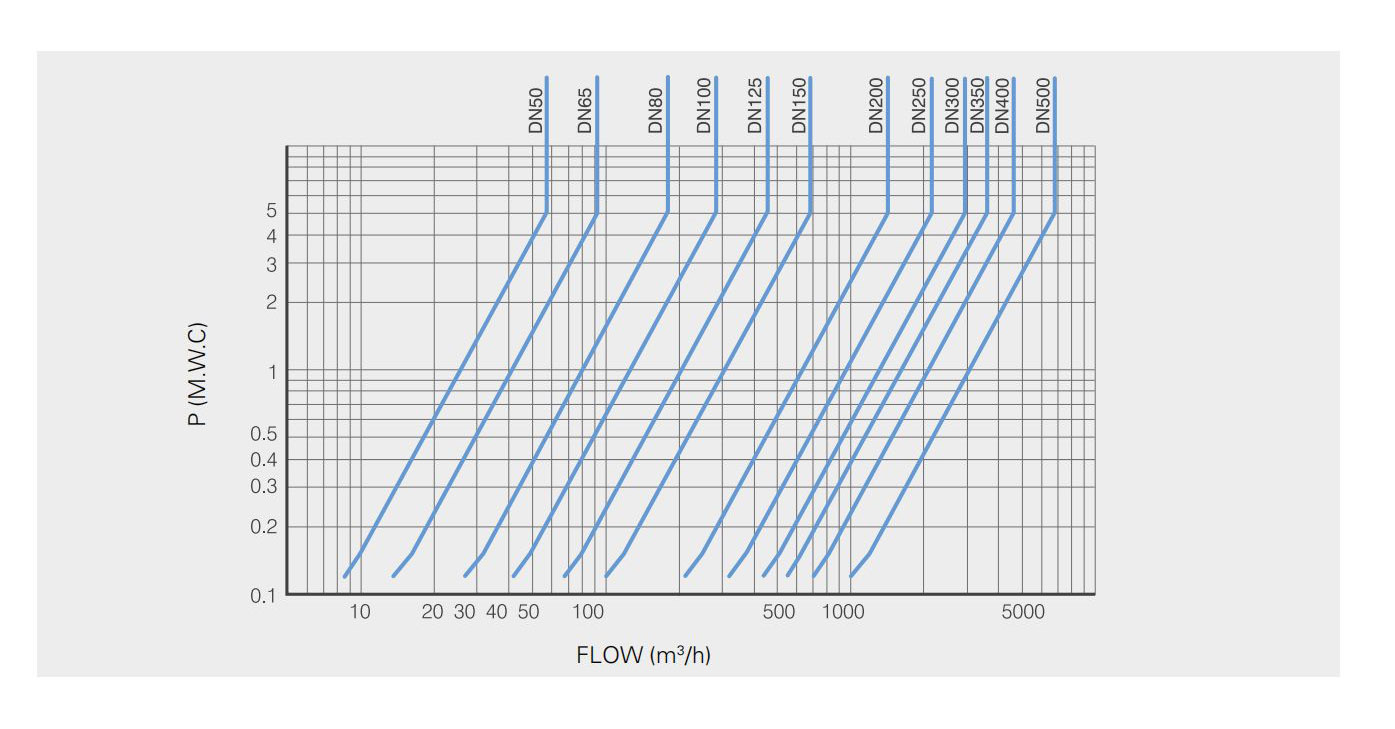

Pressure Drops

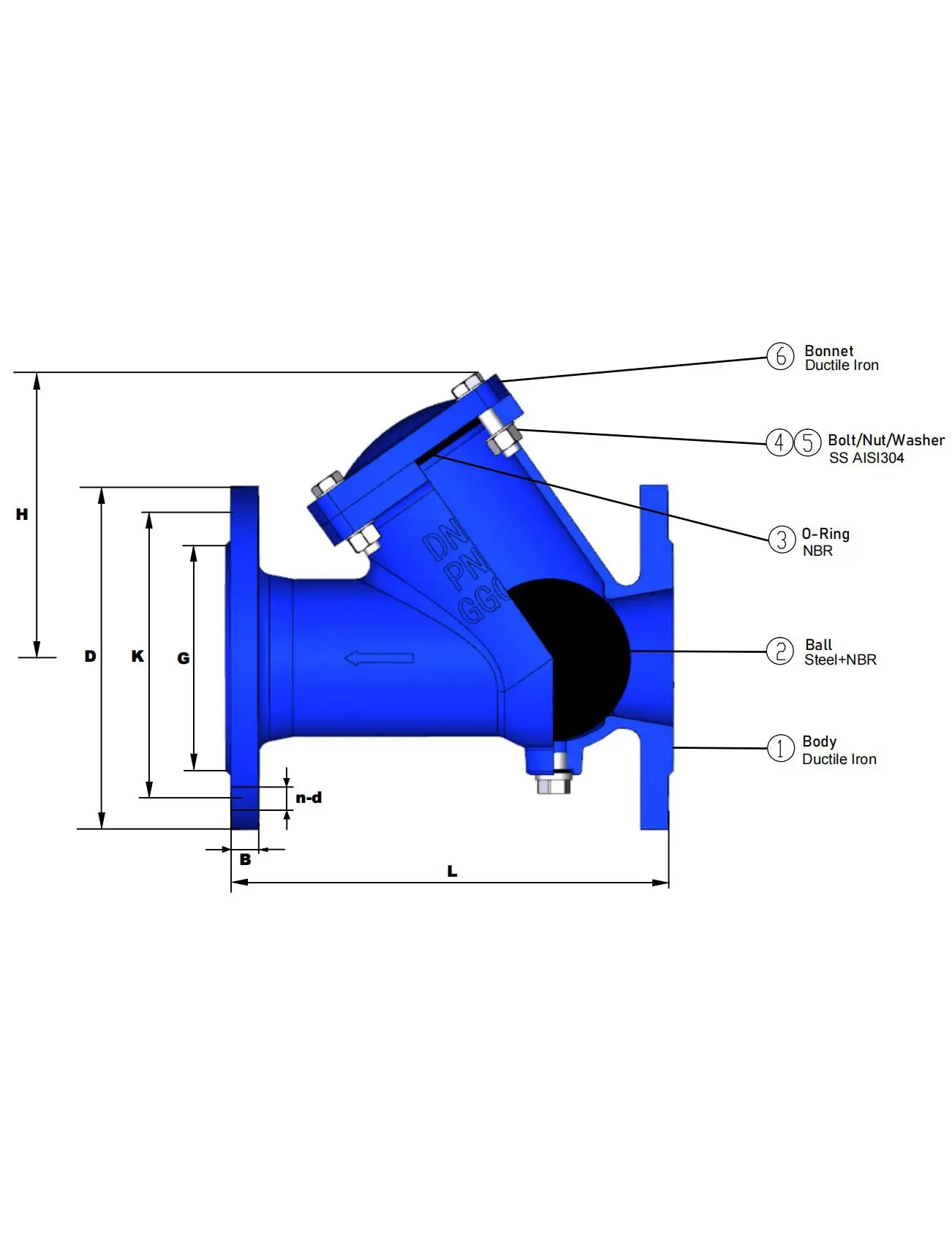

Flanged Ball Check Valve
Threaded Ball Check Valve
